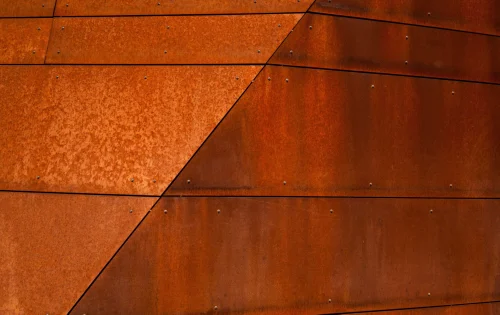

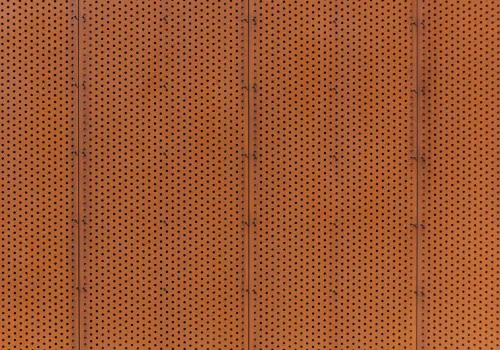

Corten Steel Cladding
Corten steel cladding is a type of protective covering used for outdoor structures. Corten steel, also known as weathering steel, naturally forms a rust-like patina on its surface when exposed to the weather. This patina helps protect the steel from further corrosion.
Corten steel cladding is popular for its durability and low maintenance requirements, making it ideal for structures that face harsh weather conditions.
Corten steel is widely used for external cladding in products like Diversaclad, Standing Seam, and Areava panels. It is both cost-effective and durable. The lightweight nature of Corten makes it easier for installers to handle, especially when used in Interlocking or Standing Seam panels.

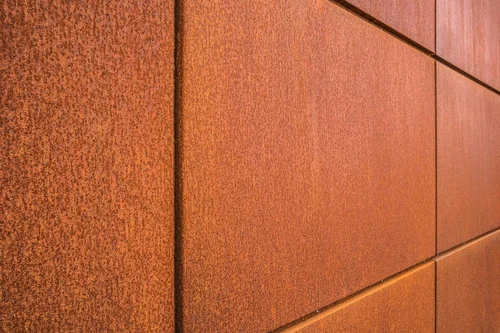

In contemporary architecture, Corten steel is versatile and fits well in both urban and rural settings. Its distinctive industrial appearance adds a unique character to buildings, making it a favored option for projects seeking eye-catching facades.
Although Corten steel is not entirely rustproof, proper maintenance can minimize issues. Water accumulation in pockets can accelerate corrosion, so effective drainage is crucial. Additionally, while Corten weathering steel develops a protective rust patina, it can cause rust stains on nearby surfaces. Careful design to ensure water does not drain onto visible areas can help prevent such staining.
Benefits of Corten Cladding
- Durability: Corten cladding lasts a long time and performs well over the years.
- Low Maintenance: It requires minimal upkeep, making it easy to manage.
- Aesthetic Appeal: The rust-like patina gives Corten cladding a distinctive and attractive look.
- Versatility: It can be used in various architectural designs and projects.
- Cost-Effective and Eco-Friendly: Corten steel is affordable and environmentally friendly.
Weathering steel cladding can be significantly more expensive than regular mild steel, often costing about three times as much. The initial purchase and installation costs are high. However, because it requires less maintenance and is highly durable, the overall cost of Corten steel cladding can be lower in the long run.
Corten Steel Tube: A Leading Supplier of Corten Cladding in India
Corten Steel Tube is a prominent supplier of Corten cladding in India. We specialize in providing high-quality Corten steel products that meet the demands of various architectural projects. With a focus on durability and aesthetic appeal, Corten Steel Tube ensures that their cladding solutions are both cost-effective and reliable. Our expertise and wide range of offerings make them a top choice for clients looking to incorporate Corten steel into their designs.
Corten Steel Cladding Specification
| Thickness | Finishing | Install Type |
|---|---|---|
| 2 to 4 mm | powder coated | Manual |
| Technique | Color | Application |
| Hot Rolled | rusty | for facade elevation |
Types of Corten Cladding
Weathering steel cladding
- Thickness: 3-20 mm
- Color: Rusty Red
- 100% recyclable
Corten wall cladding
- sun protective
- eco-friendly
- privacy screening
Rusted steel cladding
- Stablized Rust
- Pre-oxidized
- Solid Rusted
Sizes of Rusted Steel Cladding
| Stock sheet | Coiled Sheet (MOQ 130 sq. m) | ||
|---|---|---|---|
| – | – | 1m x 8m | 1m x 8m |
| 1.5mm | 2mm | 1.5 and 2mm | 4, 6, 8 and 10mm |
| – | – | 1.25m x 8m | 1.25m x 8m |
| 1.25m x 2.5m | 1.25 x 2.5m | 1.14m x 8m | 1.14m x 8m |
| – | – | 1.5m x 8m | 1.5m x 8m |
| – | – | 1.4m x 8m | 1.4m x 8m |
| – | – | – | 2m x 8m |
Weathering Steel Cladding Mechanical Properties
| Element | Grade B | Grade A |
|---|---|---|
| Tensile strength Rm MPa | 485 | 485 |
| Minimum yield point ReH Mpa *) | 345 | 345 |
| Minimum elongation A (Lo=5.65 √So) % | 19 | 20 |
Corten Steel Facade Equivalent
| Material # | ASTM | SEW 087 | EN 10155 | UNI | NFA 35-502 | BS 4360 | JIS G3114 |
|---|---|---|---|---|---|---|---|
| 1.8967 | – | – | S355K2G2W | – | – | – | – |
| 1.8945 | – | E 36 WA 3 | S355J0WP | WR 50 A | Fe 510 C1K1 | – | – |
| 1.8961 | – | WTSt 37-3 | S235J2W | Fe 360 DK 1 | E 24 W 4 | – | – |
| 1.8959 | A 588 – A 242 Gr. 1 | – | S355J0W | Fe 510 C2K1 | E 36 WB 3 | WR 50 B | SMA 50 AW |
| 1.8946 | A 242 Type 1 | – | S355J2WP | Fe 510 D1K1 | E 36 WA 4 | – | – |
| 1.8965 | – | – | S355J2G2W | – | – | – | SMA 50 CP |
| 1.8963 | A 588 Gr. A | WTSt 52-3 | S355J2G1W | Fe 510 D2K1 | – | WR 50 C | to |
| 1.8966 | A 709 Gr. 50 W | – | S355K2G1W | – | E 36 WB 4 | – | – |
Corten Wall Cladding Chemical Compositions
| Si % max. | C % max. | Mn % | Z% | S % max. | P % | N % max. | Cr % | V% | Cu % | Ni% | Mo% | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| According to EN 10027-1 & CR 10260 | ||||||||||||
| S235J2W | 0.40 | 0.13 | 0.20-0.60 | – | 0.03 | 0.04 | – | 0.40-0.80 | – | 0.25-0.55 | 0.65 | – |
| S235J0W | 0.40 | 0.13 | 0.20-0.60 | – | 0.04 | 0.04 | 0.01 | 0.40-0.80 | – | 0.25-0.55 | 0.65 | – |
| S355J2WP | 0.75 | 0.12 | 1.00 | – | 0.03 | 0.06-0.15 | – | 0.30-1.25 | – | 0.25-0.55 | 0.65 | – |
| S355J0W | 0.75 | 0.12 | 1.00 | – | 0.04 | 0.06-0.15 | 0.01 | 0.30-1.25 | – | 0.25-0.55 | 0.65 | – |
| S355J2W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.03 | 0.03 | – | 0.40-0.80 | – | 0.25-0.55 | 0.65 | 0.30 |
| S355J0W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.04 | 0.04 | 0.01 | 0.40-0.80 | – | 0.25-0.55 | 0.65 | 0.30 |
| S355K2W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.03 | 0.03 | – | 0.40-0.80 | – | 0.25-0.55 | 0.65 | 0.30 |
| According to ASTM & ASME Specn. | ||||||||||||
| A 588 Gr. B | 0.15- 0.50 | 0.20 | 0.75-1.35 | 0.05 | 0.04 | – | 0.40-0.70 | 0.01- 0.10 | 0.20-0.40 | |||
| A 588 Gr. A | 0.3- 0.65 | 0.19 | 0.80-1.25 | 0.05 | 0.04 | – | 0.40-0.65 | 0.02- 0.10 | 0.25-0.40 | |||
| A 588 Gr. C | 0.15- 0.40 | 0.15 | 0.80-1.35 | 0.05 | 0.04 | – | 0.30-0.50 | 0.01- 0.10 | 0.20-0.50 | |||
| A 242 Type-1 | – | 0.15 | 1.00 | 0.05 | 0.15 | 0.20 min. | ||||||
| A 588 Gr. K | 0.25- 0.50 | 0.17 | 0.50-1.20 | Cb-0.005 -0.05 | 0.05 | 0.04 | – | 0.40-0.70 | – | 0.30-0.50 | ||
| A 242 Type-2 | – | 0.20 | 1.50 | 0.05 | 0.04 | 0.20 min. | ||||||
| According to IS STD. | ||||||||||||
| IRSM-41 | 0.30- 0.50 | 0.10 | 0.25-0.45 | – | 0.03 | 0.075-0.14 | – | 0.35-0.49 | 0.05 | 0.30-0.60 | 0.28- 0.49 | 0.05 |

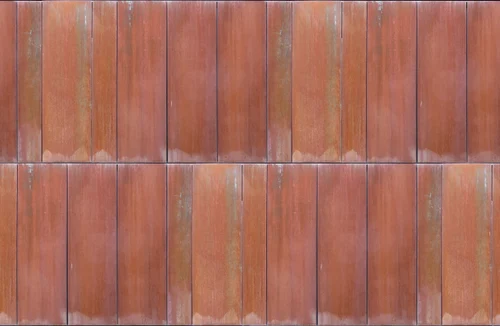

Thickness of Corten Cladding Panels
Corten cladding panels typically come in standard thicknesses ranging from 2 to 3 mm. For specific project needs, the thickness can be customized up to 10 mm. Generally, thicker Corten steel panels offer greater durability and a longer lifespan, making them a popular choice for various architectural applications.
Attaching Rusted Steel Cladding
Rusted steel cladding is typically attached using mechanical fixings and adhesives. The specific method and recommendations for attachment can vary based on the manufacturer. Generally, a minimum overlap of 25 to 50 mm is used to ensure a secure and effective installation. This overlap helps to provide stability and maintain the integrity of the cladding over time.
How to Fix Corten Cladding
- Install the Hook: Start by fixing a hook or bracket on the inner wall where the cladding will be mounted.
- Prepare the Panels: Cut and shape the Corten cladding panels as needed, typically forming them into a box shape.
- Attach Lightweight Cladding: For lightweight cladding, use strong adhesives to attach the panels to the wall.
- Weld Heavyweight Cladding: Heavyweight Corten cladding is usually welded directly to the supporting structure, ensuring a solid and integrated attachment.
- Interlocking Panels: For residential applications, some Corten steel cladding features interlocking panels that can be easily hooked together, simplifying the installation process.
