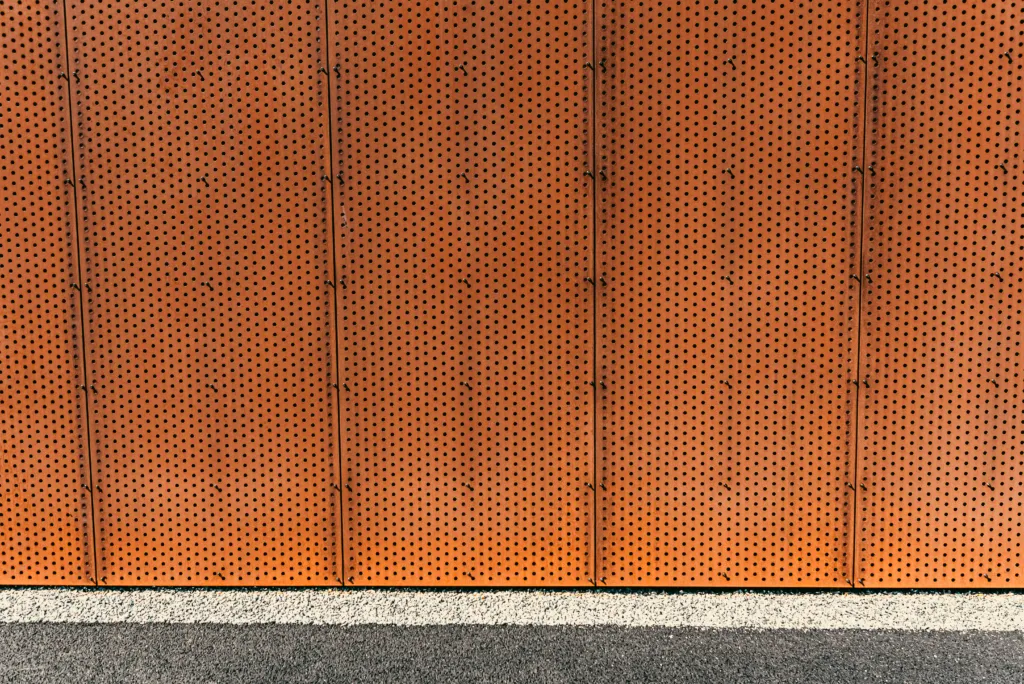

ASTM A709-50W Corten Steel Plates & Sheets Supplier
Corten Steel Tube specializes in exporting, supplying, stocking, and manufacturing ASTM A709-50W Corten Steel Plates & Sheets. We maintain a ready stock to promptly meet customer needs with fast delivery times while ensuring top-notch quality.
Renowned for our commitment to quality, Corten Steel Tube ensures that ASTM A709-50W Corten Steel Plates & Sheets develop a protective layer when exposed to weather conditions, enhancing their durability. These plates and sheets find extensive use in various applications worldwide, including bridge construction, marine transportation, sculpture, and architectural projects.
ASTM A709-50W is a standard specification for structural steel commonly used in constructing steel bridges. It includes high-strength, low-alloy structural shapes, plates, and bars. This type of steel offers significantly better atmospheric corrosion resistance compared to carbon steel, whether with or without copper addition. ASTM A709-50W is effective in various applications without paint, such as:
- Pedestrian bridges
- Highway bridge girders and other components
- Railroad bridges and overpasses
ASTM A709-50W has a minimum yield strength of 50 ksi and a minimum tensile strength of 70 ksi, making it suitable for demanding structural requirements.
ASTM A709 Chemical composition is determined through heat analysis, ensuring precise percentages of carbon, manganese, phosphorus, sulfur, silicon, and copper. Tensile properties like tensile strength, yield strength, and elongation are evaluated via tension tests to meet standards for structural integrity and performance.
For more information or inquiries about availability, customers can contact Corten Steel Tube directly.
ASTM A709 Grade 50W Chemical Composition
| Element | Chemical %A | ||
|---|---|---|---|
| Type A | Type B | Type C | |
| CB | 0.19 max | 0.20 max | 0.15 max |
| MnB | 0.80-1.25 | 0.75-1.35 | 0.80-1.35 |
| P | 0.04 max | 0.04 max | 0.04 max |
| S | 0.05 max | 0.05 max | 0.05 max |
| Si | 0.30-0.65 | 0.15-0.50 | 0.15-0.40 |
| Ni | 0.40 max | 0.50 max | 0.25-0.50 |
| Cr | 0.40-0.65 | 0.40-0.70 | 0.30-0.50 |
| Cu | 0.25-0.40 | 0.20-0.40 | 0.20-0.50 |
| V | 0.02-0.10 | 0.01 -0.10 | 0.01-0.10 |
ASTM A709 Grade 50W Steel Plate Mechanical Properties
| Thick | Yield | Elongtation | Min % | reduction | |||||
|---|---|---|---|---|---|---|---|---|---|
| Grade | mm | [MPa] | Tensile [MPa] | Steel Plate | Structural | steel | Min | HB | |
| Min | 200mm | 50mm | 200mm | 50mm | % | ||||
| A709 Grade SOW | <100 | 345Min | 485min | 18 | 21 | 18 | 21 |
ASTM A709 Grade 50 Equivalent Grades
| Grade | Yield Strength Min Mpa |
Tensile Strength Min Mpa |
Elongation % (min) |
|---|---|---|---|
| ASTM A242 |
480 | 345 | 16 |
A242 Corten Steel Pipe Equivalent
| Grade | Thick | Yield | Tensile [MPa] | Elongtation Min % | |
|---|---|---|---|---|---|
| mm | [MPa] | Steel Plate | |||
| Min | 200mm | 50mm | |||
| A709 grade 50 | ≤100 | ≥345 | 450min | 18 | 21 |
ASTM A242 Corten Steel Pipe Dimension Range
| Grade | Product types | Width (in) |
Thickness (in) |
Length (in) |
|---|---|---|---|---|
| A242 | Mill Plate | 72 to 120 | 0.250 to 0.750 | 120 to 1020 |
| A242 | Temper Leveled Plate | 48 to 96 | 0.100 to 0.625 | 72 to 720 |
| — | Coil for Conversion To | 60 to 96 | 0.188 to 0.500 | — |
Application Industries For ASTM A709-50W Corten Steel Plates & Sheets
| Petrochemical | Oil & Gas | Paper | Refineries | Nuclear Power |
| Cement | Sugar | Power Plant | Fertilizers | Breweries |
| Chemical | Petrochemical | Shipbuilding | Defence | Mining |
| Steel Plant | Construction | Oil Mills | Paper | Engineering Co. |
